Understanding Oracle Triggers – A Comprehensive Guide with Examples

---

Introduction to Oracle Triggers

In the world of database management, ensuring data consistency, integrity, and automation is crucial. Oracle triggers are a powerful tool to accomplish these objectives. They allow the automatic execution of specified actions when certain database events occur.

Whether you’re new to Oracle databases or an experienced user, understanding triggers is essential for optimizing your database operations. This article dives deep into Oracle triggers, covering their types, use cases, and practical examples to help you grasp their full potential.

---

What is an Oracle Trigger?

An Oracle trigger is a stored procedure in the Oracle database that automatically executes, or “fires,” in response to specific events. These events could be related to data manipulation (such as INSERT, UPDATE, or DELETE operations) or other database activities (such as logon or system shutdown).

Unlike stored procedures that must be invoked manually, triggers activate automatically when the specified event occurs, making them an essential tool for enforcing business rules, auditing, and maintaining data integrity.

---

Types of Oracle Triggers

Oracle triggers can be categorized based on various factors, such as the event that triggers them or their timing. The most common types include:

1. DML Triggers (Data Manipulation Language Triggers)

These are triggered by DML operations, such as INSERT, UPDATE, or DELETE. There are two types of DML triggers:

• Before Triggers: Fire before the DML operation is executed.
• After Triggers: Fire after the DML operation is completed.

2. DDL Triggers (Data Definition Language Triggers)

DDL triggers activate in response to changes in the structure of the database, such as when CREATE, ALTER, or DROP statements are executed.

3. INSTEAD OF Triggers

These triggers are commonly used for views that are not directly updatable. They allow defining an alternative action when an INSERT, UPDATE, or DELETE operation is performed on a view.

4. Compound Triggers

Introduced in Oracle 11g, compound triggers help manage common business logic across multiple timing points, such as BEFORE or AFTER, in a single trigger.

---

Timing of Oracle Triggers

In addition to the types mentioned above, Oracle triggers can be categorized based on their timing:

1. BEFORE Triggers

These triggers execute before the actual DML operation. They are useful for validation or for modifying the data before it is inserted or updated in the database. For instance, you can use a BEFORE trigger to ensure that data adheres to specific constraints before it’s inserted.

2. AFTER Triggers

These triggers execute after the DML operation. AFTER triggers are commonly used for logging or updating other tables once the original operation has been completed successfully.

3. INSTEAD OF Triggers

This type of trigger is used with views to provide a substitute for direct DML operations. Since most views are not directly updatable, INSTEAD OF triggers offer a way to handle INSERT, UPDATE, or DELETE actions.

---

Creating Triggers in Oracle

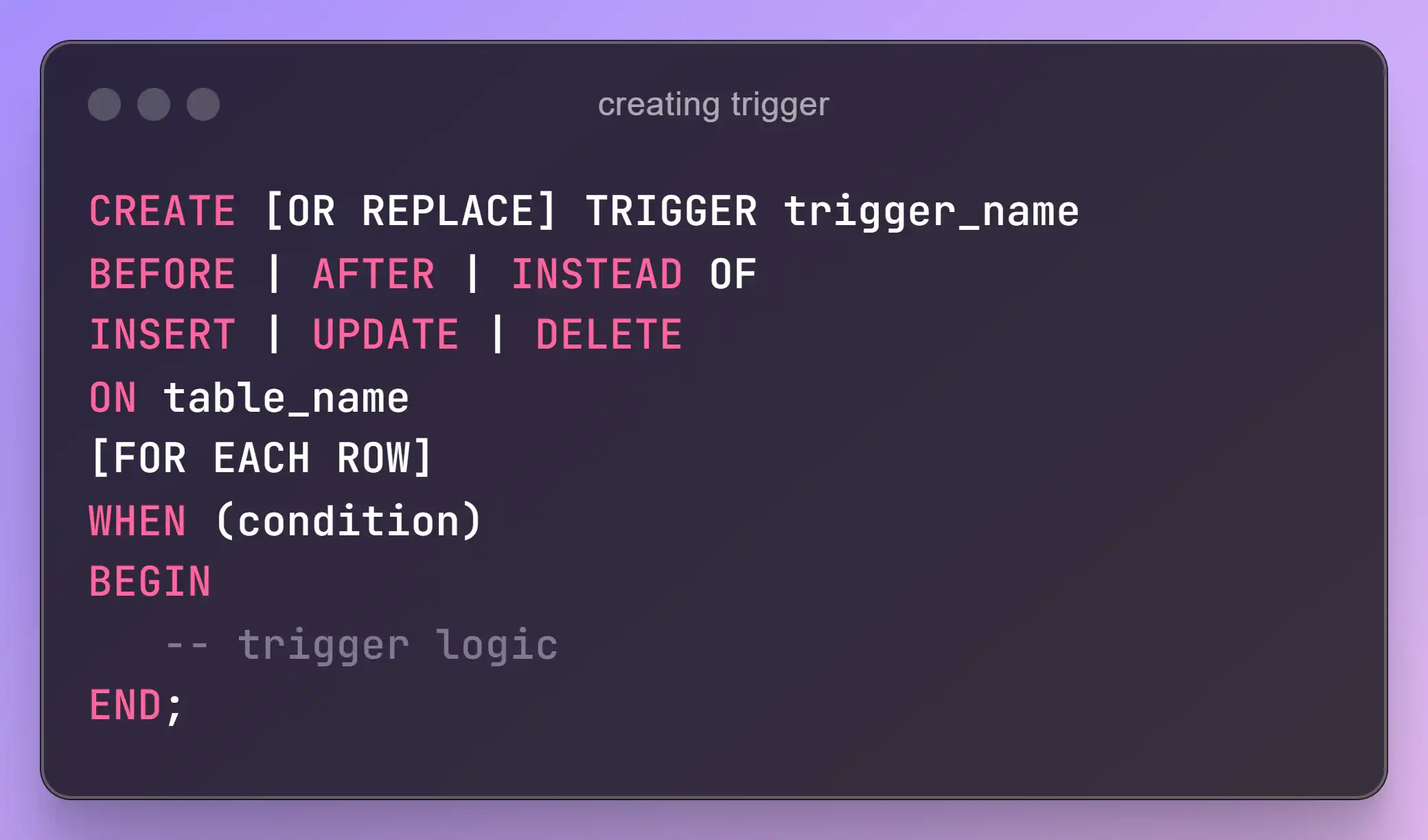

To create a trigger in Oracle, you use the CREATE TRIGGER statement. Here’s a general syntax:

• BEFORE/AFTER: Defines when the trigger should fire.
• INSERT/UPDATE/DELETE: Specifies the event that activates the trigger.
• ON table_name: Indicates the table the trigger is associated with.
• FOR EACH ROW: This option allows row-level triggers, which fire for each row affected by the DML operation.

---

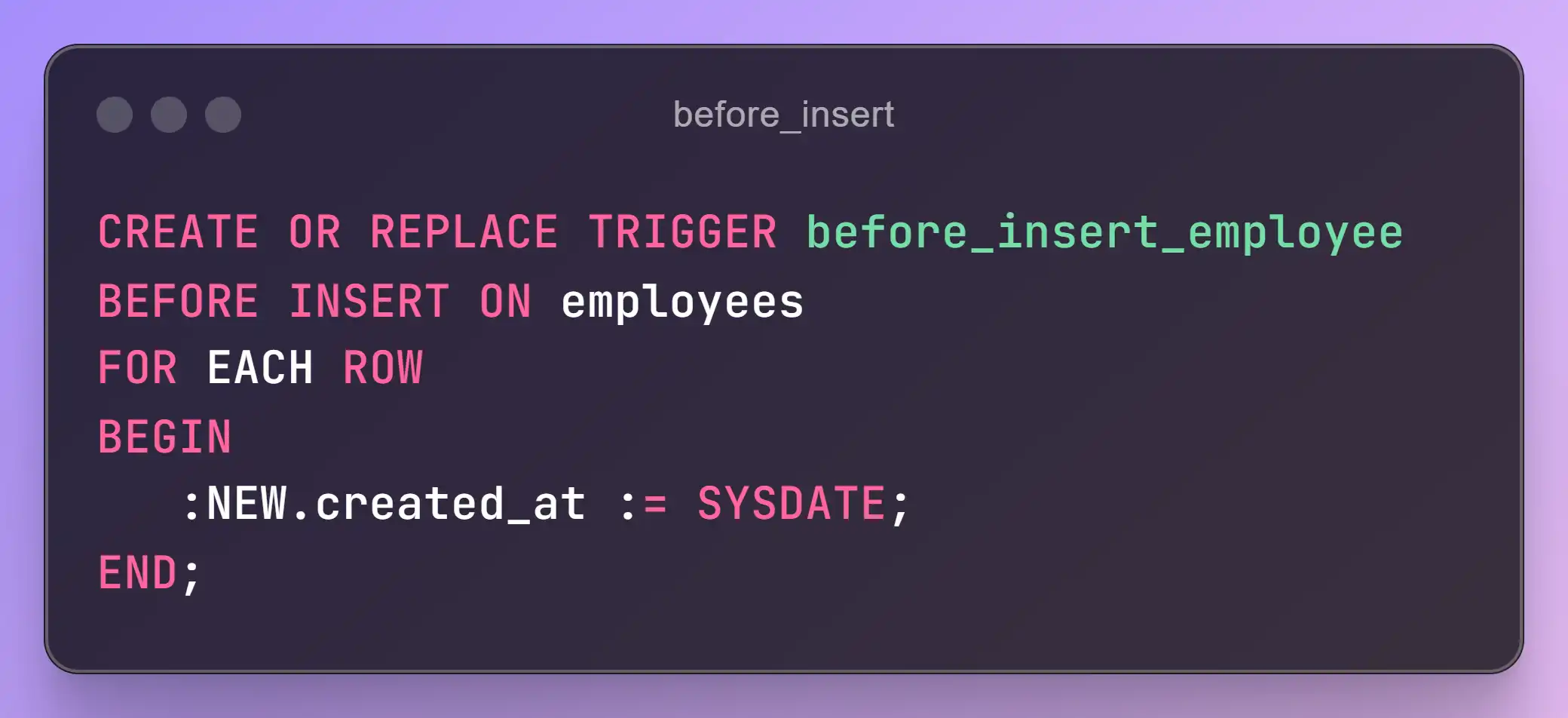

Example of a Simple BEFORE INSERT Trigger

Let’s look at a basic example. Assume we have a table called employees where we want to automatically insert the current timestamp whenever a new row is added.

Explanation:

• BEFORE INSERT: This trigger fires before a new row is inserted into the employees table.
• FOR EACH ROW: This indicates that the trigger fires once for every new row being inserted.
• :NEW: Refers to the new row that is being inserted. We assign the current date and time (SYSDATE) to the created_at field.

---

AFTER INSERT Trigger Example (DML Trigger)

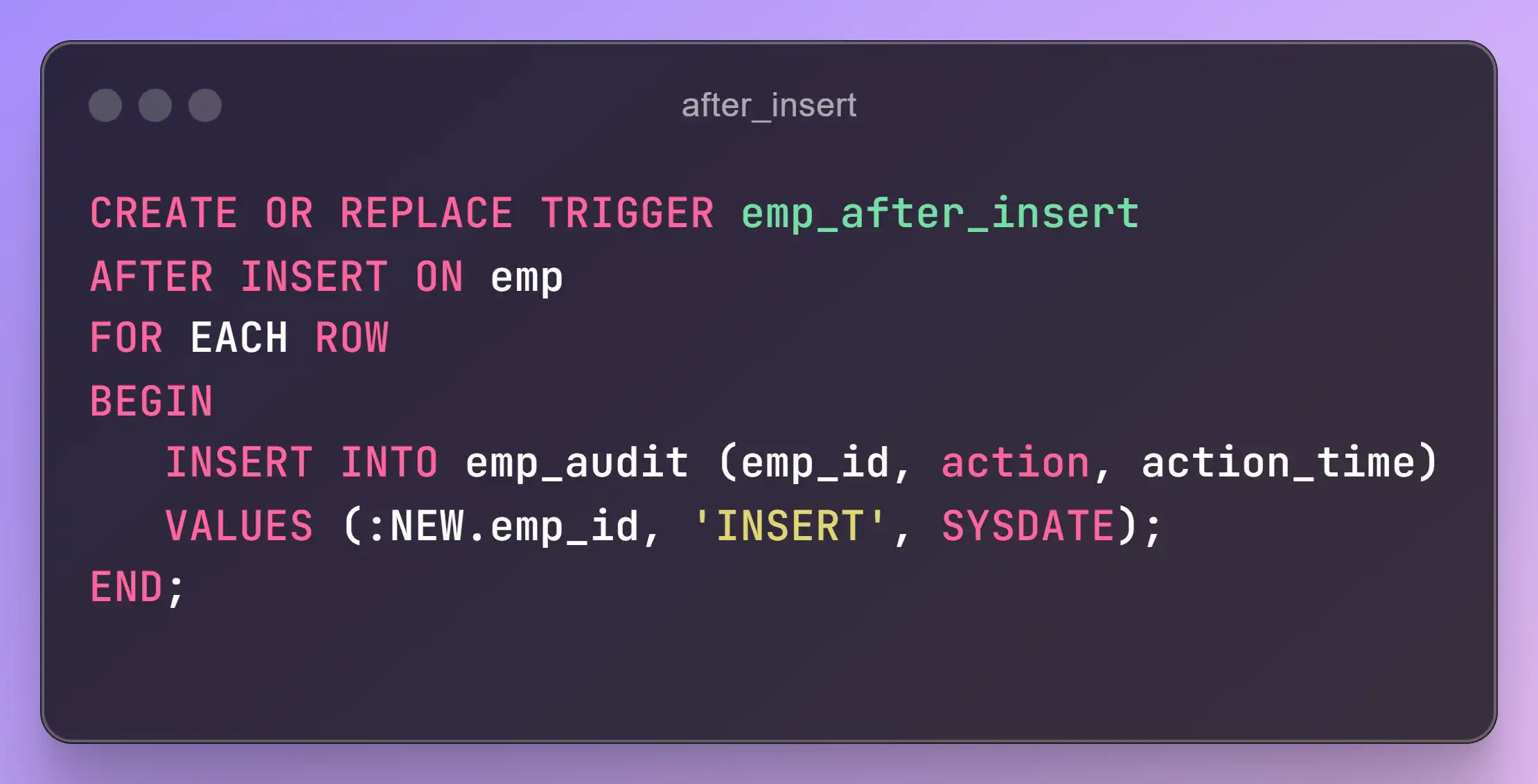

Scenario: After a new employee is added to the emp table, we want to record this insertion in an audit log table (emp_audit) for monitoring purposes.

Explanation:

• Table: emp
• Trigger Event: After an INSERT
• Logic: After an employee is added, the emp_id and the action (“INSERT”) are logged in the emp_audit table with the timestamp.
• Real-Time Use: Helps maintain a historical record of employee additions, useful for tracking and auditing purposes.

---

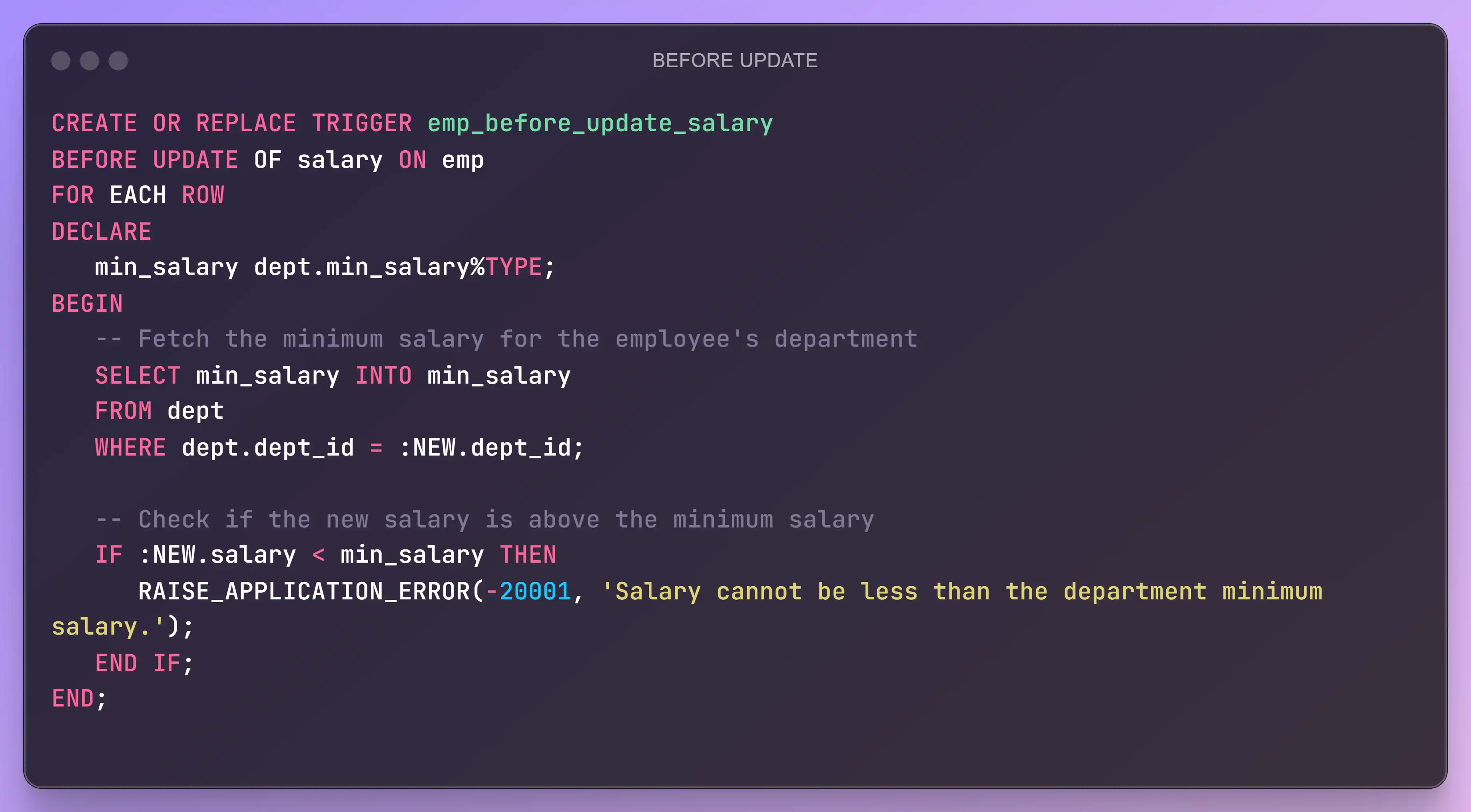

BEFORE UPDATE Trigger Example (DML Trigger)

Scenario: Before updating an employee’s salary, we want to make sure that the new salary is not less than the minimum salary set for the employee’s department.

Explanation:

• Table: emp
• Trigger Event: Before an UPDATE on the salary column
• Logic: The trigger checks if the new salary is less than the department’s minimum salary. If it is, the update is cancelled, and an error message is raised.
• Real-Time Use: Enforces business rules by ensuring that salary changes respect department minimum wage policies.

---

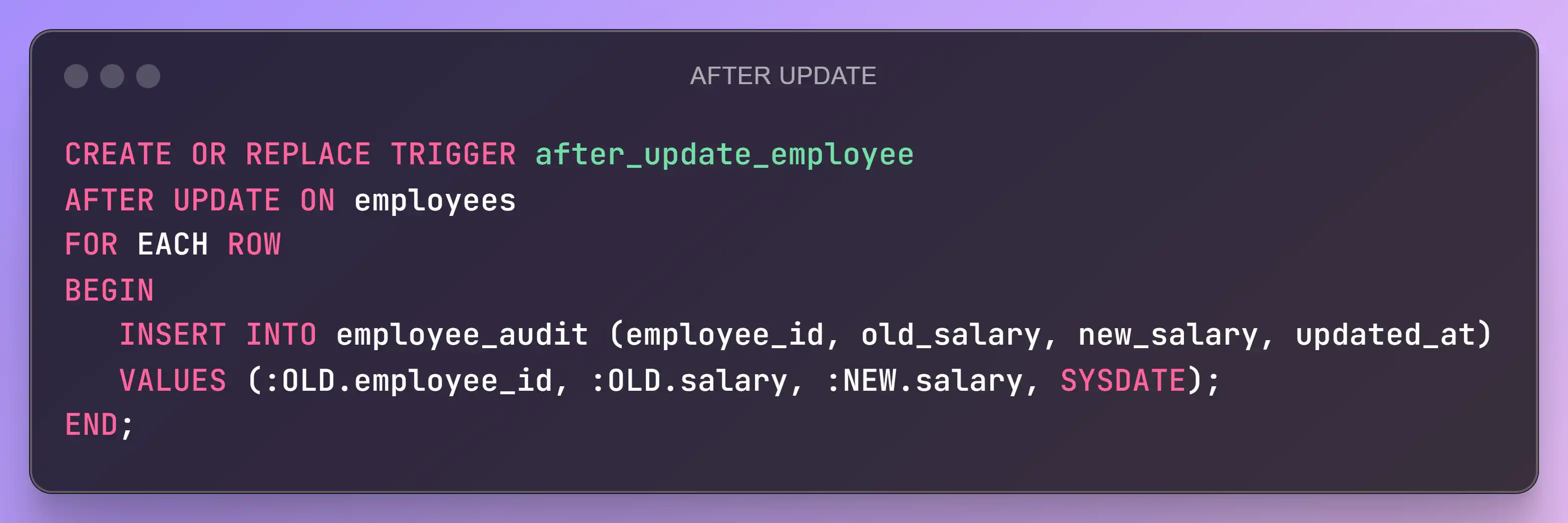

Example of an AFTER UPDATE Trigger

Suppose we want to log every update made to the employees table. We can use an AFTER UPDATE trigger to insert a record into an audit table called employee_audit whenever an update occurs.

Explanation:

• AFTER UPDATE: This trigger fires after a row in the employees table is updated.
• :OLD: Refers to the values before the update.
• :NEW: Refers to the updated values. Here, we are logging the employee’s old salary, the new salary, and the time of update into the employee_audit table.

---

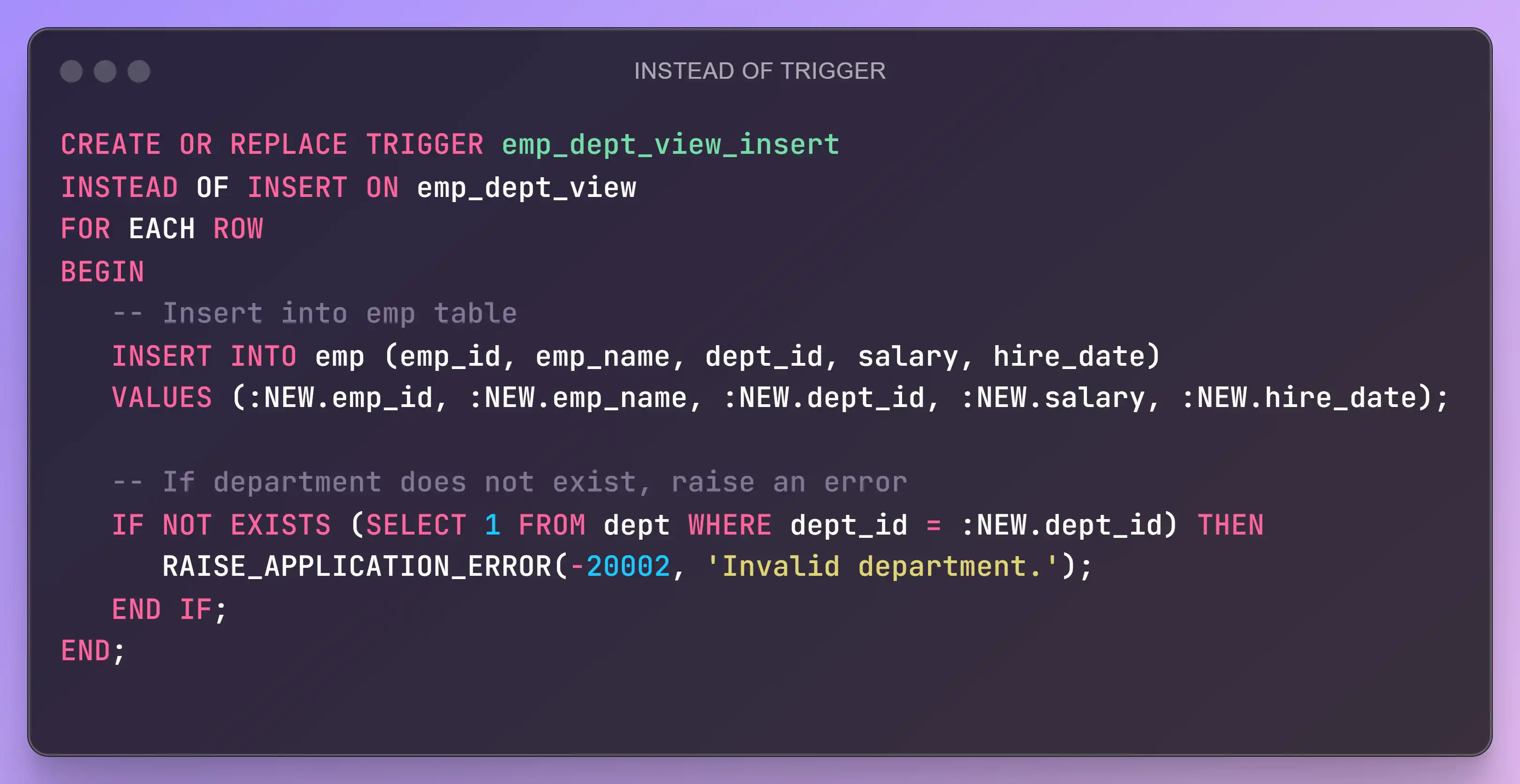

INSTEAD OF Trigger Example (Used with Views)

Scenario: We have a view called emp_dept_view that joins the emp and dept tables. Since the view is not directly updatable, we use an INSTEAD OF trigger to handle INSERT operations.

Explanation:

• Table: emp_dept_view (a view joining emp and dept)
• Trigger Event: INSTEAD OF an INSERT
• Logic: The trigger inserts the employee data into the emp table and checks if the department exists. If not, it raises an error.
• Real-Time Use: Allows us to insert data into the emp table via the view while ensuring data integrity for department relationships.

---

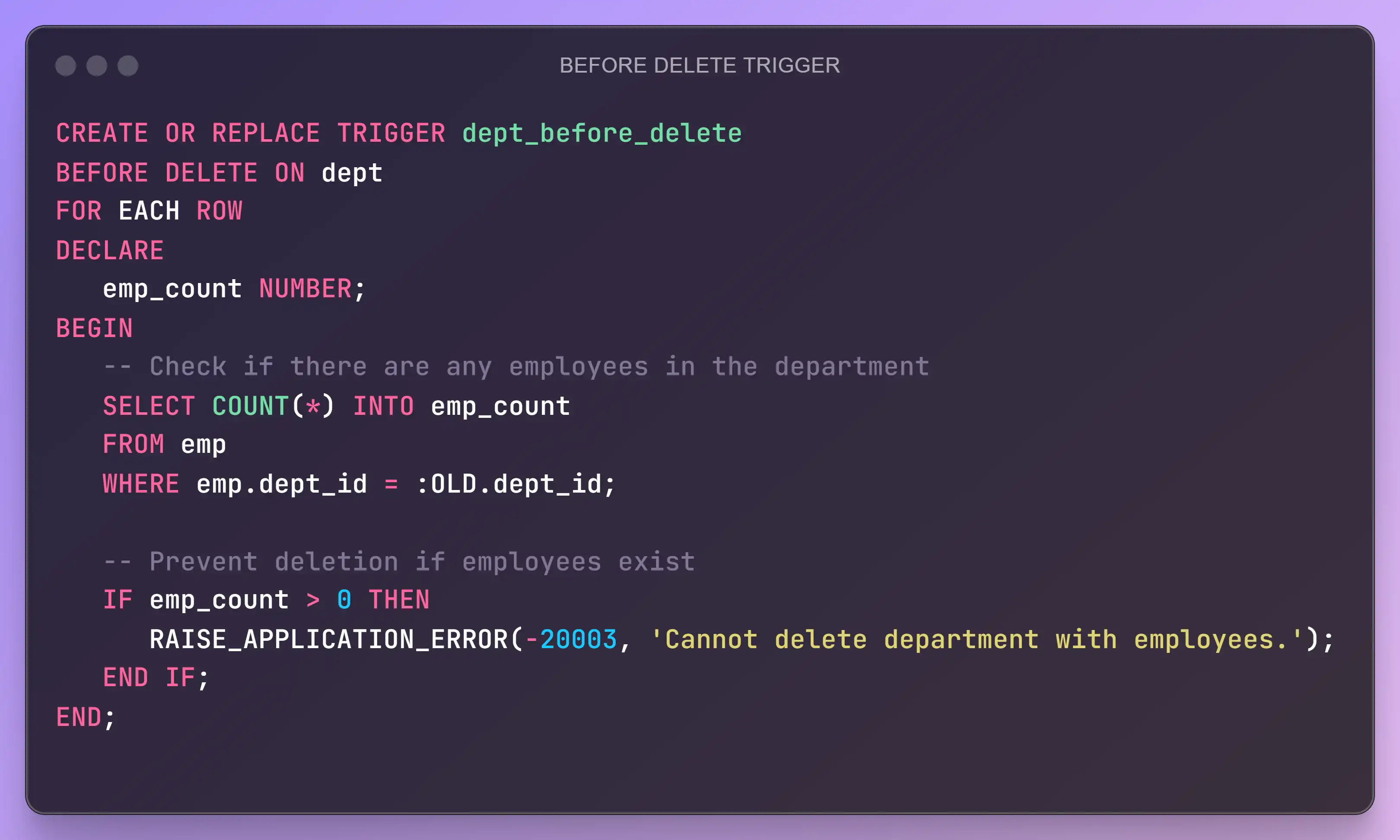

BEFORE DELETE Trigger Example (DML Trigger)

Scenario: Before deleting a department from the dept table, we want to ensure there are no employees currently assigned to that department.

Explanation:

• Table: dept
• Trigger Event: Before a DELETE on the dept table
• Logic: The trigger checks if any employees are assigned to the department. If there are, the delete operation is canceled, and an error is raised.
• Real-Time Use: Prevents the accidental deletion of departments that still have active employees.

---

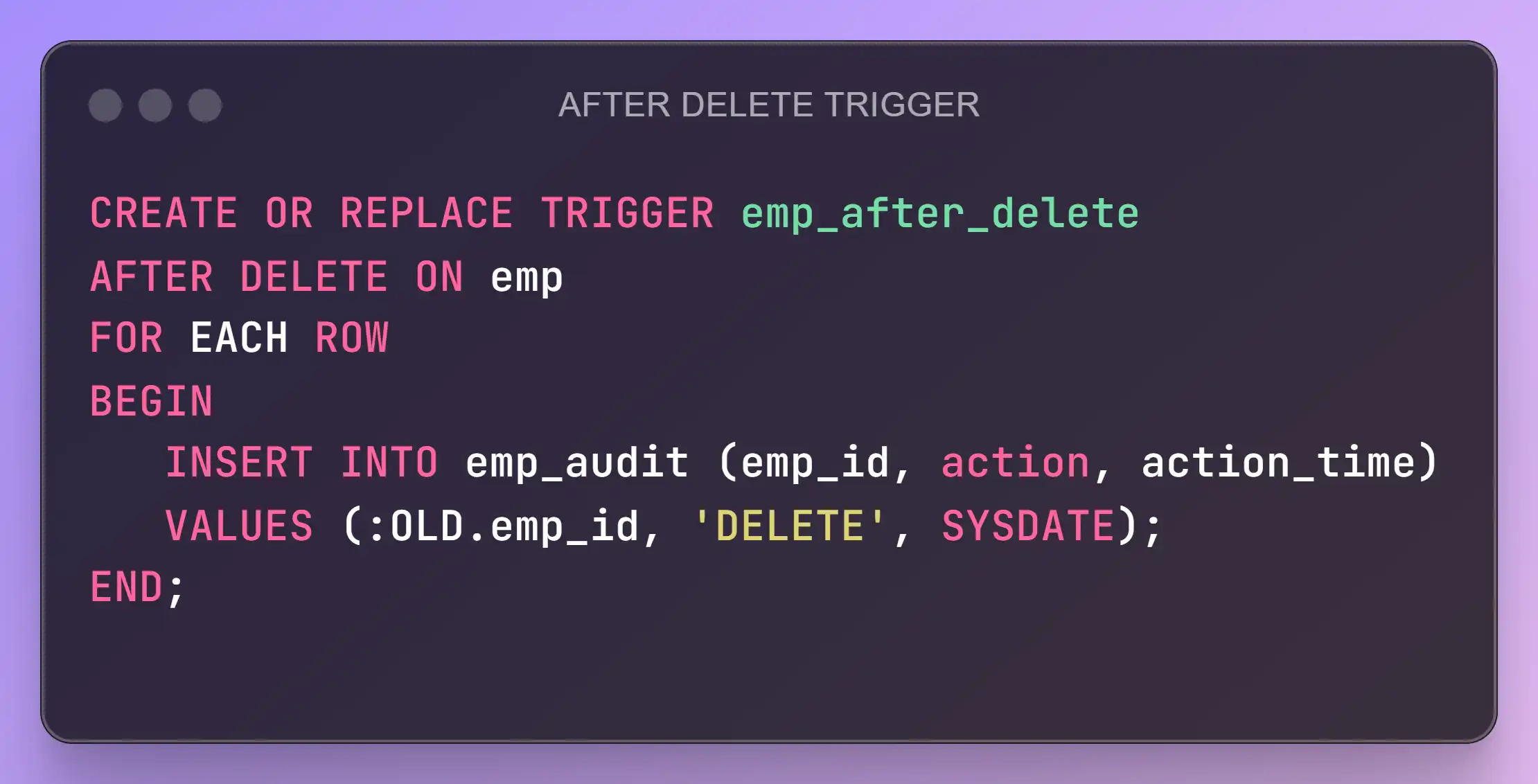

AFTER DELETE Trigger Example (DML Trigger)

Scenario: After an employee is deleted from the emp table, we want to log the deletion into the emp_audit table.

Explanation:

• Table: emp
• Trigger Event: After a DELETE
• Logic: The trigger logs the employee deletion into the emp_audit table.
• Real-Time Use: Maintains a record of employee deletions for audit purposes.

---

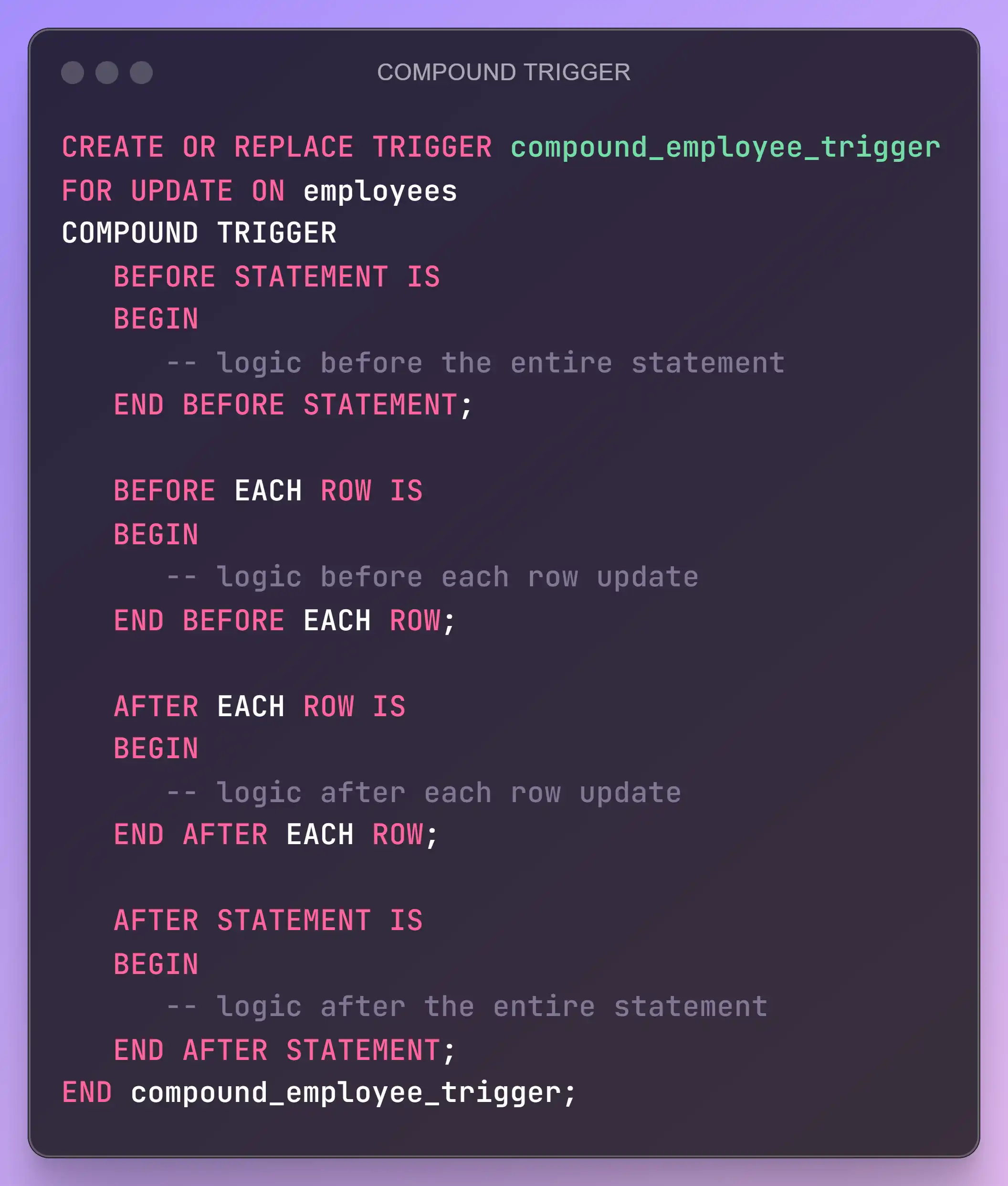

Compound Triggers Example

In Oracle 11g and later, compound triggers allow you to manage common operations across different timing points. Let’s say you need to check certain conditions both before and after an update to the employees table.

Explanation:

• BEFORE/AFTER STATEMENT: These parts of the trigger execute before or after the entire DML statement (not just per row).
• BEFORE/AFTER EACH ROW: These fire before or after each row is processed.

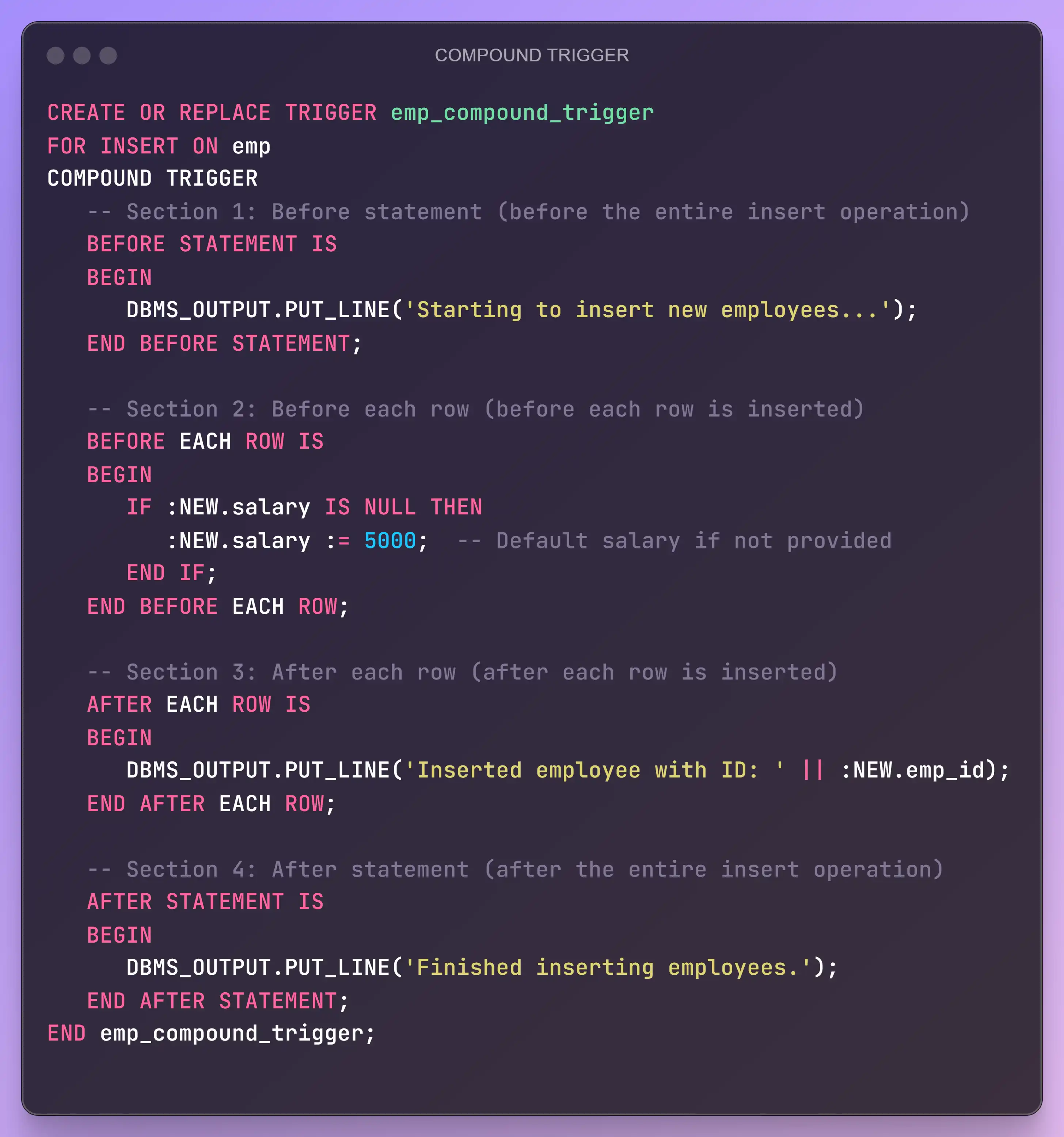

Example :

---

Explanation:

• Table: emp
• Trigger Event: For an INSERT operation
• Logic: The trigger performs validation and default assignments before each row is inserted and logs messages at various points of the insertion process.
• Real-Time Use: Consolidates multiple actions related to a single insert operation into one trigger, improving performance and maintainability.

Best Practices for Using Oracle Triggers

While Oracle triggers can automate many tasks, they should be used judiciously. Here are some best practices:

1. Avoid Overuse: Triggers can introduce complexity and make debugging harder. Use them only when necessary.
2. Keep Logic Simple: Complex logic inside triggers can degrade performance, especially if the trigger fires frequently.
3. Document Your Triggers: Provide clear documentation on why the trigger was implemented and what it does, as future developers may need to understand the reasoning.
4. Test Thoroughly: Since triggers can affect data integrity, they should be thoroughly tested to ensure they behave as expected in all scenarios.
5. Consider Mutating Table Issues: Be cautious of mutating table errors, which occur when a trigger tries to query or modify the table that caused it to fire.

---

Conclusion

Oracle triggers are a powerful feature of the Oracle database, allowing you to automate actions, enforce business rules, and maintain data integrity. By understanding the different types of triggers—BEFORE, AFTER, and INSTEAD OF—and how they work, you can make your database management more efficient. While triggers should be used with caution, they are indispensable for tasks like auditing and maintaining data consistency.

---

FAQs

1. What are Oracle triggers used for?
Oracle triggers are used to automate actions such as enforcing data integrity, auditing, and implementing business rules when specific database events occur.

2. What is the difference between BEFORE and AFTER triggers?
BEFORE triggers execute before the DML operation takes place, while AFTER triggers execute after the operation is completed.

3. Can we have multiple triggers for the same event in Oracle?
Yes, you can have multiple triggers for the same event, but it’s essential to manage them carefully to avoid conflicts.

4. What are compound triggers?
Compound triggers, introduced in Oracle 11g, allow you to define trigger logic across multiple timing points (BEFORE, AFTER, etc.) in a single trigger block.

5. Are there performance concerns with using too many triggers?
Yes, using too many or overly complex triggers can degrade performance, as they add overhead to the database operations they are attached to.
