Mastering PostgreSQL Architecture: 6 Powerful Steps to Optimize Performance & Scalability

PostgreSQL, often referred to as Postgres, is a powerful open-source relational database management system (RDBMS) known for its robustness, extensibility, and performance. Its architecture is designed to handle complex workloads while ensuring reliability and scalability. In this blog, we’ll briefly explore the PostgreSQL architecture, its key components, and how it supports high-performance applications. This guide is optimized for those searching for insights into PostgreSQL database architecture, performance optimization, and scalable database solutions.

Facts about PostgreSQL
• The world’s most advanced open-source database
• Designed for extensibility and customization
• ANSI/ISO compliant SQL support
• Actively developed for more than 30 years
• University Postgres (1986-1993)
• Postgres95 (1994-1995)
• PostgreSQL (1996-current

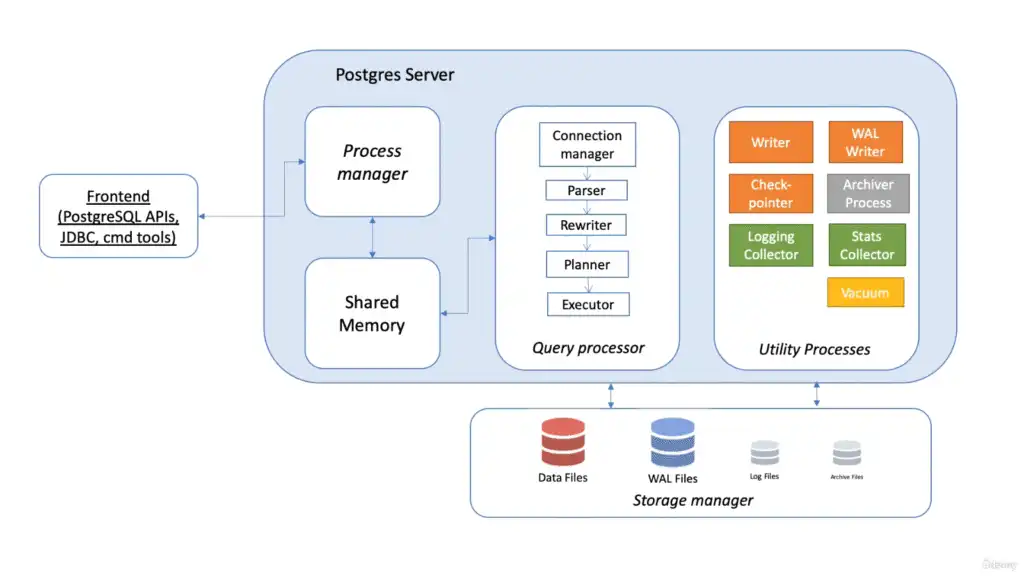

PostgreSQL Architecture :

The PostgreSQL architecture is built on a client-server model, where the database server processes requests from client applications. It uses a process-based architecture, meaning each client connection spawns a dedicated backend process. This design ensures isolation and fault tolerance, making Postgres a go-to choice for mission-critical applications.

Key Components of PostgreSQL Architecture

1.Postmaster Process :

Overview

The Postmaster Process is the heart of PostgreSQL’s architecture, acting as the primary supervisory process. It is the first process started when the PostgreSQL server is launched and remains active throughout the server’s lifecycle.

Detailed Functionality

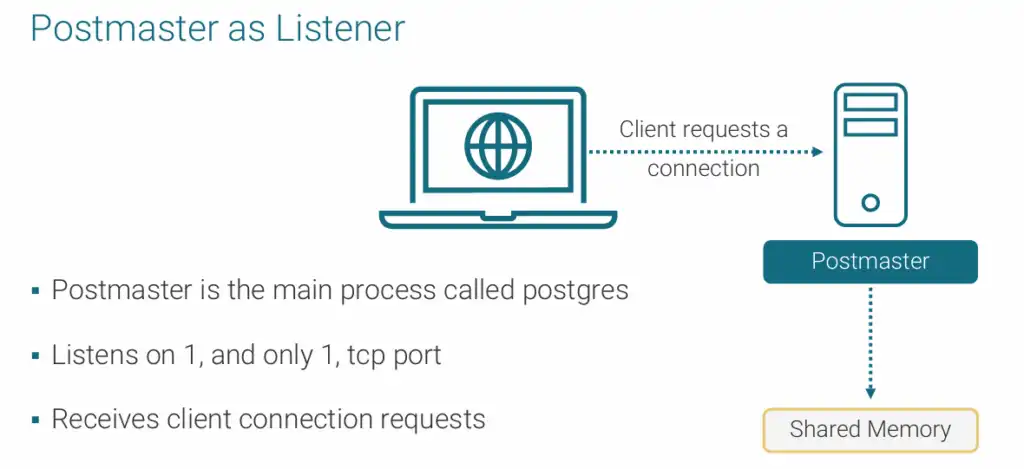

• Connection Management: The Postmaster listens for incoming client connections on a specified port (default: 5432). When a client (e.g., a web application or psql) attempts to connect, the Postmaster authenticates the client using configured authentication methods (e.g., password, GSSAPI, or SSL).
• Forking Backend Processes: For each validated connection, the Postmaster forks a new backend process to handle the client’s queries. This process-based model ensures isolation, meaning a crash in one client session doesn’t affect others.
• Resource Management: The Postmaster manages shared resources, such as shared memory and semaphores, ensuring efficient allocation across backend processes.
• Startup and Shutdown: It oversees server startup, recovery (e.g., replaying WAL logs after a crash), and graceful shutdown, ensuring no data is lost.
• Background Process Supervision: The Postmaster spawns and monitors background processes like the Checkpointer, Autovacuum, and WAL Writer.

2. Backend Processes

Overview

Backend Processes are dedicated processes created by the Postmaster to handle individual client connections. Each client session (e.g., a user running a query via psql or an application) is serviced by its own backend process.

Detailed Functionality

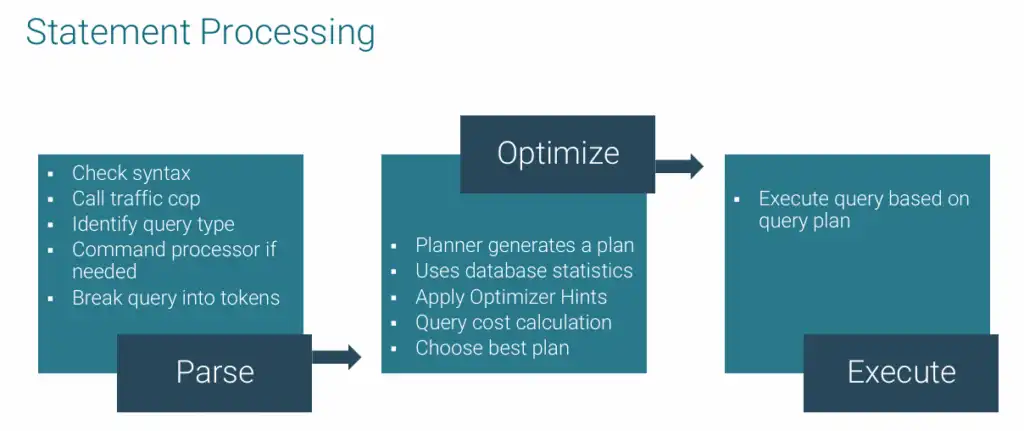

• Query Execution: The backend process parses, plans, and executes SQL queries received from the client. It interacts with the shared memory (e.g., shared buffers) and storage system to fetch or modify data.
• Transaction Management: Backend processes manage transactions, ensuring ACID properties (Atomicity, Consistency, Isolation, Durability). They use Multiversion Concurrency Control (MVCC) to provide consistent data snapshots for concurrent transactions.

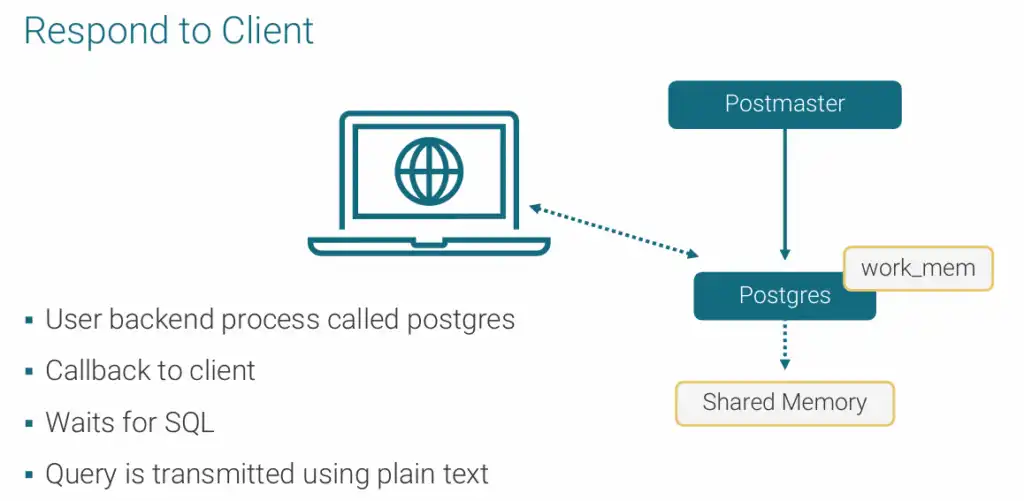

• Client Communication: The backend process communicates with the client, sending query results or error messages. It supports protocols like the PostgreSQL Frontend/Backend Protocol.
• Resource Usage: Each backend process consumes system resources (CPU, memory). PostgreSQL’s configuration parameters, such as max_connections, control the number of simultaneous backend processes to prevent resource exhaustion.

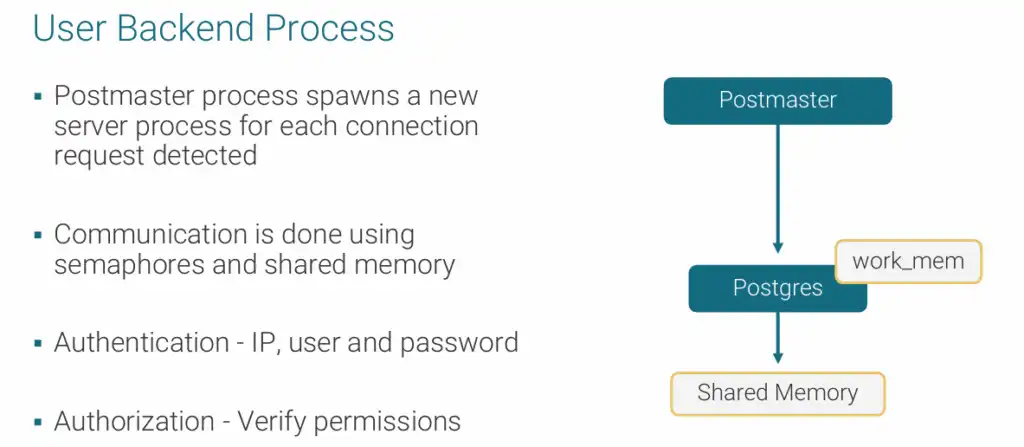

• Postmaster process spawns a new server process for each connection request detected.

Importance

The dedicated backend process model ensures isolation and reliability, as a faulty query or client crash only affects the associated process. However, it can be resource-intensive under high connection loads, making connection pooling (e.g., via PgBouncer) a common optimization.

3. Shared Memory

Overview

Shared Memory is a region of system memory allocated when the PostgreSQL server starts. It is accessible to all backend and background processes and is used to store critical data structures like buffers, caches, and locks.

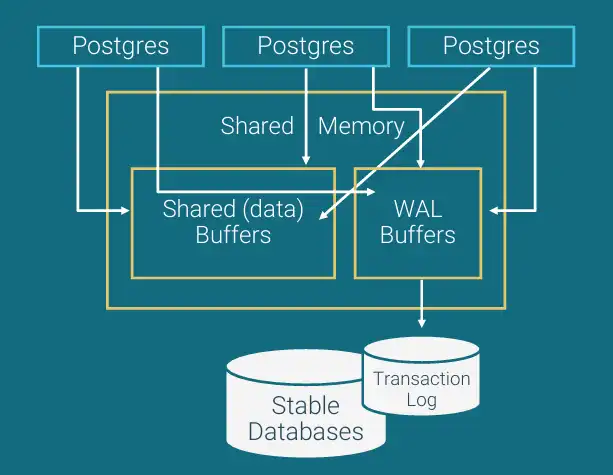

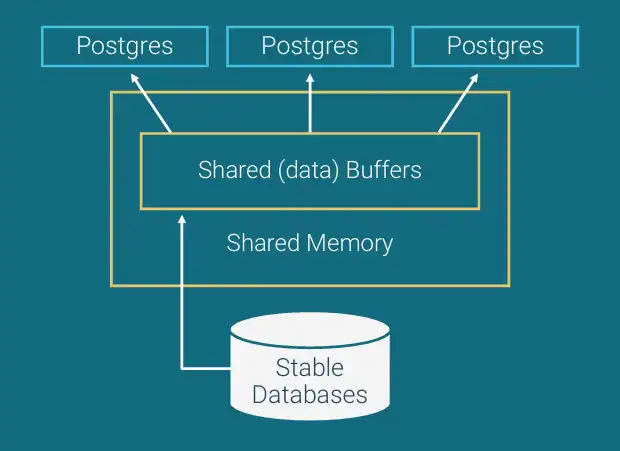

Disk Read Buffering :

• Postgres buffer cache (shared_buffers) reduces OS reads Shared (data) Buffers
• Read the block once, then examine it many times in cache

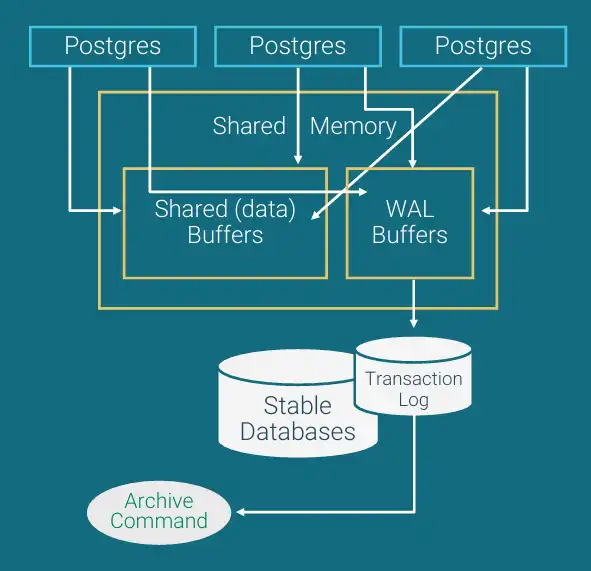

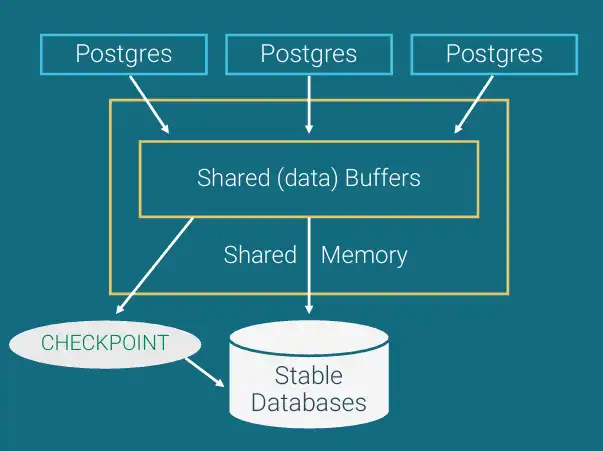

Disk Write Buffering :

Blocks are written to disk only when needed: 1) To make room for new blocks 2)At checkpoint time

Detailed Functionality

Shared memory is divided into several subcomponents:

a. Shared Buffers

• Purpose: Cache frequently accessed data pages (e.g., table rows, indexes) to reduce disk I/O.
• Operation: When a query needs data, the backend process checks the shared buffers first. If the data isn’t cached, it’s read from disk and stored in the shared buffers, evicting older pages if necessary (using a Least Recently Used algorithm).
• Configuration: Controlled by the shared_buffers parameter (e.g., 25% of system RAM is a common setting). Proper tuning improves query performance.

b. WAL Buffers

• Purpose: Temporarily store Write-Ahead Logging (WAL) data before it’s written to disk.
• Operation: Changes from transactions are written to WAL buffers, ensuring durability. These buffers are periodically flushed to WAL log files by the WAL Writer.
• Configuration: Set via wal_buffers (default: 4MB). Adequate sizing prevents bottlenecks during high transaction volumes.

c. Caches

• Query Plan Cache: Stores execution plans for frequently run queries to avoid re-planning, improving performance.
• Metadata Cache: Caches system catalog data (e.g., table schemas) for faster query processing.
• Operation: Managed automatically by PostgreSQL, with eviction based on usage patterns.

d. Locks and Semaphores

• Purpose: Manage concurrency and synchronization between processes.
• Operation: Locks (e.g., row-level or table-level) prevent conflicting operations, while semaphores coordinate access to shared resources like buffers.

Importance

Shared memory is critical for performance optimization, as it minimizes disk I/O and accelerates query execution. Proper configuration of shared_buffers and wal_buffers is essential for handling high-throughput workloads.

4. Write-Ahead Logging (WAL)

Overview

Write-Ahead Logging (WAL) is a mechanism that ensures data durability and supports crash recovery and replication. It records all database changes in a log before they are applied to the database files.

Detailed Functionality

• Operation: When a transaction modifies data (e.g., INSERT, UPDATE, DELETE), the changes are first written to the WAL buffers in shared memory. These are then flushed to persistent WAL log files on disk before the transaction commits.
• Crash Recovery: If the server crashes, PostgreSQL uses WAL logs to replay changes, restoring the database to a consistent state. This ensures no committed data is lost.
• Replication: WAL supports streaming replication and logical replication. Primary servers send WAL records to replicas, which apply them to stay synchronized.

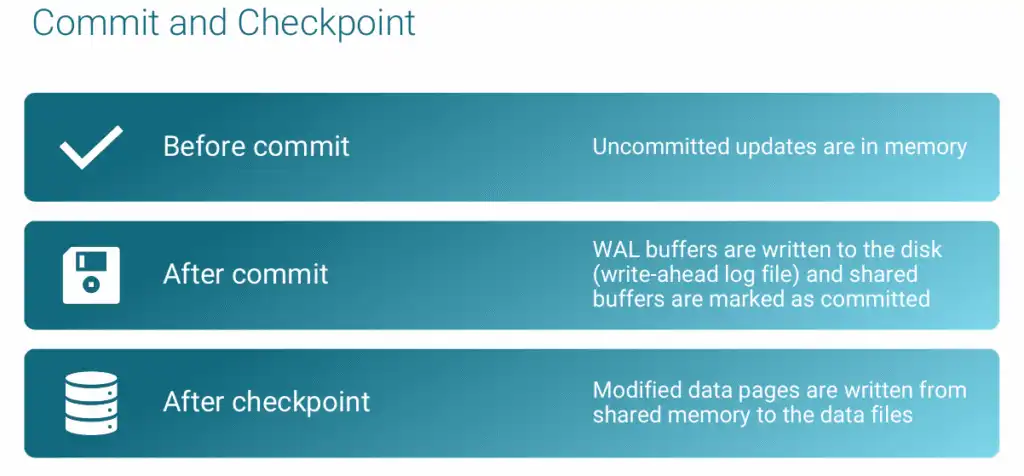

• Checkpoints: Periodically, PostgreSQL creates a checkpoint, writing all modified data pages to disk. WAL logs after the checkpoint are used for recovery.
• Configuration: Parameters like wal_level, wal_buffers, and checkpoint_timeout control WAL behavior. For example, wal_level=replica enables streaming replication.

Importance

WAL is the backbone of PostgreSQL’s durability and replication capabilities. It ensures data integrity during crashes and enables high availability through replication, making Postgres suitable for distributed systems.

5. Storage System

Overview

The Storage System manages how PostgreSQL stores and retrieves data on disk. It uses a file-based structure organized into tablespaces and implements Multiversion Concurrency Control (MVCC) for concurrent access.

Detailed Functionality

• Tablespaces: Logical containers for data files. Each tablespace maps to a directory on disk, allowing DBAs to distribute data across multiple storage devices for performance or capacity.
• Heap Storage: Tables are stored as heaps, collections of data pages (default size: 8KB). Each page contains rows, with metadata like tuple headers for MVCC.
• Indexes: PostgreSQL supports multiple index types (e.g., B-tree, GiST, GIN) stored separately from table data. Indexes speed up query execution but require maintenance.
• MVCC: Multiversion Concurrency Control creates multiple versions of a row to support concurrent transactions. Readers see a consistent snapshot without being blocked by writers, improving concurrency.
  • Dead Tuples: Old row versions (from updates or deletes) remain until cleaned by Autovacuum, which reclaims space.
  • Transaction IDs: MVCC uses transaction IDs (XIDs) to track row visibility, ensuring isolation.
• TOAST: Large objects (e.g., text or bytea) are compressed or split into chunks using the TOAST (The Oversized-Attribute Storage Technique) system, optimizing storage for big data.

Importance

The storage system’s use of MVCC and tablespaces enables high concurrency and flexible storage management. MVCC is particularly valuable for applications with heavy read-write workloads, while tablespaces support scalability across large datasets.

6. Background Processes

Overview

Background Processes run continuously to perform maintenance, optimization, and recovery tasks. They reduce the burden on backend processes, ensuring smooth operation.

Detailed Functionality

a. Checkpointer

• Purpose: Periodically writes dirty (modified) pages from shared buffers to disk, creating a checkpoint.
• Operation: Checkpoints reduce the amount of WAL needed for crash recovery. Triggered by checkpoint_timeout or when WAL segments reach a threshold (max_wal_size).
• Importance: Minimizes recovery time after a crash and stabilizes I/O load.

b. Autovacuum

• Purpose: Reclaims space from dead tuples (old row versions) and updates table statistics for the query planner.
• Operation: Runs automatically based on table activity. Prevents table bloat and ensures optimal query plans.
• Configuration: Controlled by parameters like autovacuum_vacuum_threshold and autovacuum_analyze_threshold.

c. Background Writer

• Purpose: Asynchronously writes dirty pages from shared buffers to disk, reducing I/O pressure during checkpoints or high transaction loads.
• Operation: Operates in the background, complementing the Checkpointer for smoother performance.
• Configuration: Tuned via bgwriter_lru_maxpages and bgwriter_delay.

d. WAL Writer

• Purpose: Flushes WAL buffers to disk, ensuring transaction durability.
• Operation: Runs periodically or when WAL buffers fill, minimizing latency for transaction commits.
• Importance: Critical for data durability and replication performance.

e. Logger (Optional)

• Purpose: Logs server activity (e.g., errors, slow queries) to a file or external system.
• Operation: Configured via log_destination and log_min_messages. Useful for monitoring and debugging.

f. Archiver (Optional)

• Purpose: Archives WAL logs for Point-in-Time Recovery (PITR) or replication.
• Operation: Copies completed WAL segments to a specified location, enabling restore to a specific point in time.

Importance

Background processes automate maintenance tasks, ensuring database performance, space efficiency, and reliability. Tuning these processes (e.g., adjusting Autovacuum settings) is crucial for high-throughput environments.

Default Installation Directory Location:

• Linux – /usr/pgsql-16
• bin – Programs
• lib – Libraries
• share – Shared data

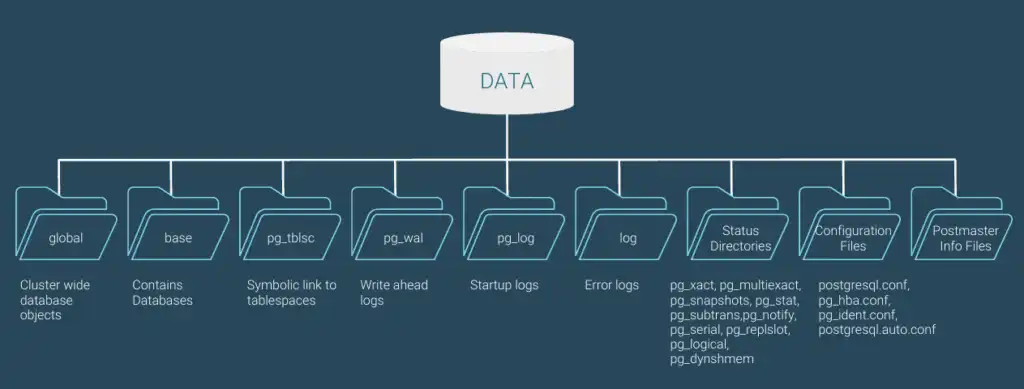

Default Data directory – /var/lib/pgsql/16/data

Why Understanding PostgreSQL Architecture Matters

The PostgreSQL architecture is a carefully engineered system that balances performance, reliability, and scalability. Each component plays a specific role:

• Postmaster ensures robust connection handling.
• Backend Processes provide fault isolation and query execution.
• Shared Memory optimizes data access speed.
• WAL guarantees durability and replication.
• Storage System supports concurrency and flexible storage.
• Background Processes maintain efficiency and stability.

For developers and DBAs, mastering these components enables:

• Performance Tuning: Adjusting shared_buffers, wal_buffers, or Autovacuum settings to match workload demands.
• Scalability: Configuring replication or tablespaces for distributed or large-scale systems.
• Reliability: Leveraging WAL and checkpoints for crash recovery and high availability.

Conclusion

The PostgreSQL architecture is a testament to its reputation as a robust and versatile RDBMS. By understanding the Postmaster, Backend Processes, Shared Memory, WAL, Storage System, and Background Processes, you can unlock Postgres’s full potential for performance, reliability, and scalability. Whether you’re building a small application or a global enterprise system, PostgreSQL’s architecture provides the tools to succeed.

Explore PostgreSQL’s official documentation to optimize your Postgres deployment! For more SQL related content click here.
